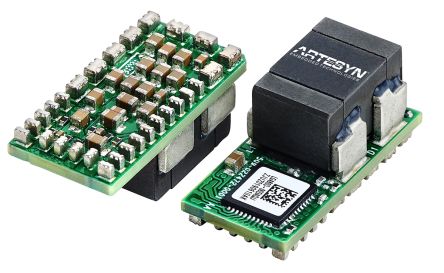

Non-Isolated DC-DC Converter, 5.2V dc Output, 80A [LGA80D-00DADJJ]; 172-0188
0₫
Mã kho: 1720188
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage Range | 7.5 → 14 V dc |
Output Voltage | 5.2V dc |
Output Current | 80A |
Power Rating | 200W |
Mounting Type | Surface Mount |
Number of Outputs | 2 |
Length | 25.9mm |
Width | 14mm |
Depth | 12.2mm |
Efficiency | 0.955 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Special Features | Exceptional Power Density, Support PMBus, Two Phase Design |
Line Regulation | 0.002 |
Maximum Input Current | 33A |
Protection Features | Over Current Protection, Over Temperature Protection, Over Voltage Protection |
Load Regulation | 0.005 |
Series | LGA80D |
Ripple And Noise | 50mV |
Standards Met | EN 60950-1 |
MTBF | 50Mh |
Power Signal Conversion Type | DC-DC |
