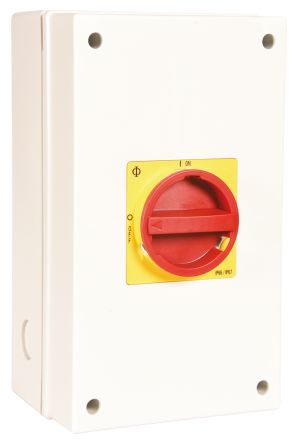

4 Pole Enclosed Non Fused Isolator Switch, NO, 80 A, 22 kW, 30 kW, IP66, IP67 [KG80 T204/GBA290 *KL1V]; 828-5293
0₫
Mã kho: 8285293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 4 |
| Maximum Current | 80 A |
| Mounting Type | Enclosed |
| Normal State Configuration | NO |
| Power Rating | 22 kW, 30 kW |
| IP Rating | IP66, IP67 |
| Accepts Padlocks | Yes |
| Voltage Rating | 380 → 415 V, 690 V |
| Electrical Phase | 3 |
| Length | 250mm |
| Width | 145mm |
| Depth | 107mm |
| Throw Configuration | Single |
| Handle Colour | Black |
