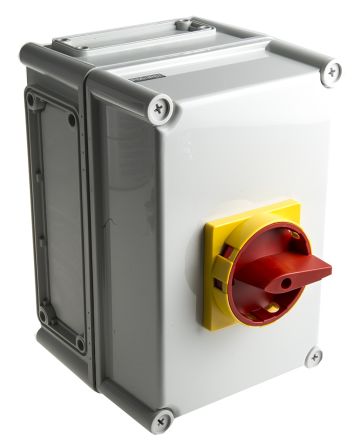

6 Pole Non Fused Isolator Switch, NO, 100 A, 37 kW, IP65 [KG100T206GBA004ST]; 193-6039
0₫
Mã kho: 1936039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 6 |
| Maximum Current | 100 A |
| Normal State Configuration | NO |
| Power Rating | 37 kW |
| IP Rating | IP65 |
| Accepts Padlocks | Yes |
| Voltage Rating | 690 V ac |
| Auxiliary Contacts Available | Yes |
| Electrical Phase | 3 |
| Length | 280mm |
| Width | 190mm |
| Depth | 245mm |
| Terminal Type | Wire Lead |
| Maximum Operating Temperature | +55°C |
