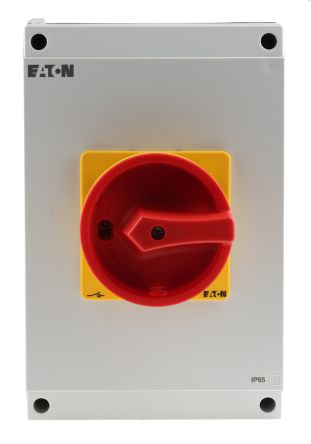

6 Pole Enclosed Non Fused Isolator Switch, NO, 63 A, 22 kW, IP65 [T5B-4-15682/I4/SVB]; 393-9793
by Eaton
0₫
Mã kho: 3939793
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Poles | 6 |
Maximum Current | 63 A |
Mounting Type | Enclosed |
Normal State Configuration | NO |
Power Rating | 22 kW |
IP Rating | IP65 |
Accepts Padlocks | Yes |
Voltage Rating | 415 V ac |
Auxiliary Contacts Available | Yes |
Switch Rating | 1300 A |
Length | 240mm |
Width | 160mm |
Depth | 125mm |
Maximum Operating Temperature | +50°C |
Throw Configuration | Single |
Terminal Type | Screw |
Handle Colour | Red |
Minimum Operating Temperature | -25°C |
