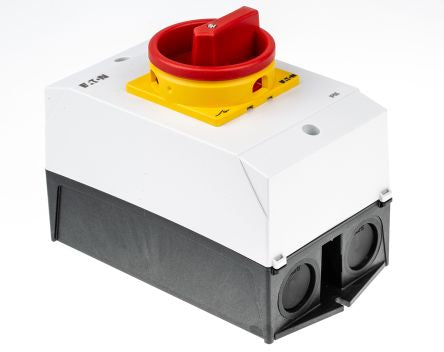

6 Pole Enclosed Non Fused Isolator Switch, 6NO, 32 A, 13 kW, IP65 [T3-3-8342/I2/SVB]; 103-8459
by Eaton
0₫
Mã kho: 1038459
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 6 |
| Maximum Current | 32 A |
| Mounting Type | Enclosed |
| Series | T3-3 |
| Normal State Configuration | 6NO |
| Power Rating | 13 kW |
| IP Rating | IP65 |
| Accepts Padlocks | Yes |
| Voltage Rating | 690 V |
| Electrical Phase | 1, 3 |
| Switch Rating | 260 A |
| Length | 80mm |
| Width | 122mm |
| Depth | 120mm |
| Terminal Type | Screw |
| Handle Colour | Red |
| Throw Configuration | Single |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |
