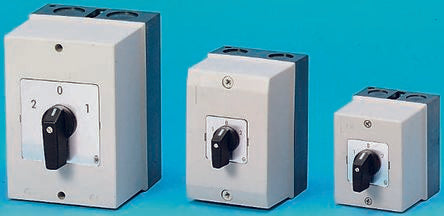

3 Pole Enclosed Non Fused Isolator Switch, 3NO/3NC, 25 A dc, 32 A ac, 22 kW, IP65 [T3-3-8212/I2H+K-CI(RS3939901)]; 393-9901
by Eaton
0₫
Mã kho: 3939901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 3 |
| Maximum Current | 25 A dc, 32 A ac |
| Mounting Type | Enclosed |
| Normal State Configuration | 3NO/3NC |
| Power Rating | 22 kW |
| IP Rating | IP65 |
| Voltage Rating | 240 V dc, 690 V ac |
| Electrical Phase | 3 |
| Switch Rating | 6000 V ac |
| Length | 180mm |
| Width | 100mm |
| Depth | 135mm |
| Handle Colour | Black |
| Terminal Type | Screw |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -25°C |
