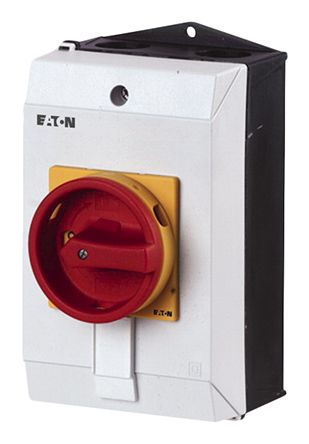

3 Pole Enclosed Changeover Switch, 3NO, 20 A, 6.5 kW, IP65 [T0-3-15683/I1/SVB]; 103-8457
by Eaton
0₫
Mã kho: 1038457
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Poles | 3 |
Maximum Current | 20 A |
Series | T0-3 |
Mounting Type | Enclosed |
Normal State Configuration | 3NO |
Power Rating | 6.5 kW |
IP Rating | IP65 |
Accepts Padlocks | Yes |
Voltage Rating | 690 V |
Auxiliary Contacts Available | Yes |
Electrical Phase | 1, 3 |
Switch Rating | 110 A |
Length | 80mm |
Width | 122mm |
Depth | 120mm |
Minimum Operating Temperature | -25°C |
Terminal Type | Screw |
Handle Colour | Red |
Maximum Operating Temperature | +50°C |
Throw Configuration | Single |
