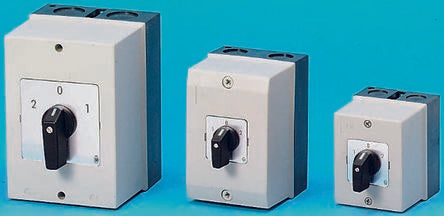

1 Pole Enclosed Non Fused Isolator Switch, NO/NC, 10 A dc, 20 A ac, 7.5 kW, IP65 [T0-1-8210/I1H]; 629-2053
by Eaton
0₫
Mã kho: 6292053
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 1 |
| Maximum Current | 10 A dc, 20 A ac |
| Mounting Type | Enclosed |
| Normal State Configuration | NO/NC |
| Power Rating | 7.5 kW |
| IP Rating | IP65 |
| Voltage Rating | 240 V dc, 690 V ac |
| Electrical Phase | 1 |
| Switch Rating | 6000 V ac |
| Length | 137mm |
| Width | 80mm |
| Depth | 102mm |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -25°C |
| Handle Colour | Black |
| Terminal Type | Screw |
