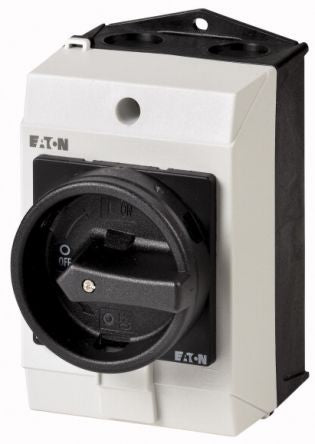

2 Pole Surface Mount Non-Fused Switch Disconnector, 20 A, 5.5 kW, IP65 [T0-1-102/I1/SVB-SW]; 176-9744
by Eaton
0₫
Mã kho: 1769744
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 2 |
| Maximum Current | 20 A |
| Mounting Type | Surface Mount |
| Power Rating | 5.5 kW |
| IP Rating | IP65 |
| Accepts Padlocks | Yes |
| Voltage Rating | 690 V ac |
| Switch Rating | 320 A |
| Length | 80mm |
| Width | 110mm |
| Depth | 137mm |
| Handle Colour | Black |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Screw |
| Maximum Operating Temperature | +40 (Enclosed)°C |
