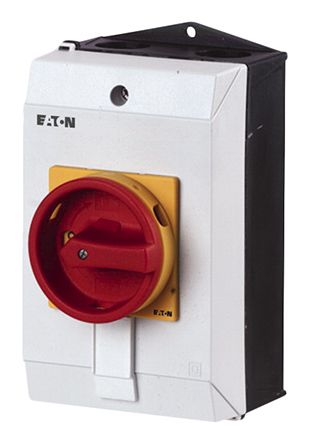

3 Pole Enclosed Switch Disconnector, 3NO, 32 A, 15 kW, IP65 [P1-32/I2/SVB/HI11]; 103-8463
by Eaton
0₫
Mã kho: 1038463
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Poles | 3 |
Maximum Current | 32 A |
Series | P1-32 |
Mounting Type | Enclosed |
Normal State Configuration | 3NO |
Power Rating | 15 kW |
IP Rating | IP65 |
Accepts Padlocks | Yes |
Voltage Rating | 690 V |
Auxiliary Contacts Available | Yes |
Electrical Phase | 1, 3 |
Switch Rating | 300 A |
Length | 100mm |
Width | 107mm |
Depth | 180mm |
Maximum Operating Temperature | +50°C |
Throw Configuration | Single |
Minimum Operating Temperature | -25°C |
Terminal Type | Screw |
Handle Colour | Red |
