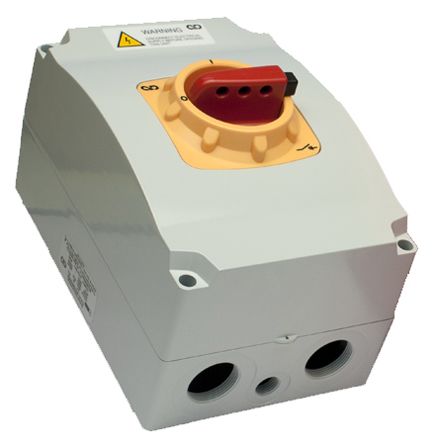

3P + N Pole Enclosed Mount Switch Disconnector, NO, 40 A, 15 kW, IP65 [SDDG403N]; 136-9417
0₫
Mã kho: 1369417
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Poles | 3 + N |
| Maximum Current | 40 A |
| Range | I-switch |
| Series | SDDG |
| Mounting Type | Enclosed Mount |
| Normal State Configuration | NO |
| Power Rating | 15 kW |
| IP Rating | IP65 |
| Accepts Padlocks | Yes |
| Voltage Rating | 380 / 440 V ac |
| Auxiliary Contacts Available | Yes |
| Electrical Phase | 3 |
| Switch Rating | 40 A |
| Length | 150mm |
| Width | 220mm |
| Depth | 160mm |
| Terminal Type | Screw |
| Handle Colour | Red |
| Throw Configuration | ST |
