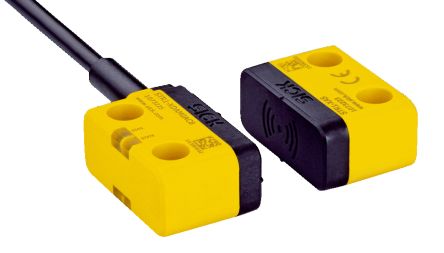

![Sick STR1-SASM0AC5 1466203](http://nguyenxuong.com/cdn/shop/products/Y1466203-01_444x253.jpg?v=1594251346)
STR1 RFID Safety Switch, Vistal, 24 V dc [STR1-SASM0AC5]; 146-6203
by Sick
0₫
Mã kho: 1466203
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Housing Material | Vistal |
Auxiliary Contacts | 1 |
Connection Type | 5Pin M12 Plug |
Switch Type | Safety |
Terminal Type | 0.2m cable with 5-Pole M12 Connector |
Series | STR1 |
Switching Distance | 6 (Side Sensor - On) mm, 10 (Front Sensor - On) mm, 25 (Off) mm |
IP Rating | IP67 |
Supply Current | 50 mA |
Actuator Included | Yes |
Built in Safety Relay | Yes |
Standards Met | CE, CULus, EN 62061, FCC, IEC 61508 |
Length | 18mm |
Actuator Type | Standard |
Depth | 40mm |
Width | 26.2mm |
Dimensions | 18 x 26.2 x 40 mm |
Sensor Principle | RFID |
Safety Category | Category 4 (EN ISO 13849), PL e (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (EN 62061) |
Number of Approach Directions | 5 |
