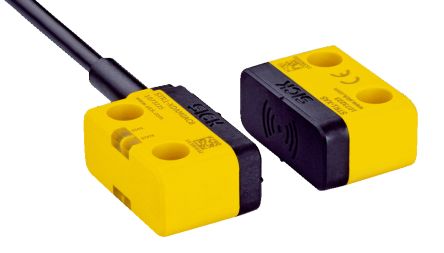

STR1 RFID Safety Switch, Vistal, 24 V dc [STR1-SASM03P5]; 146-6205
by Sick
0₫
Mã kho: 1466205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Housing Material | Vistal |
Auxiliary Contacts | 1 |
Connection Type | Cable |
Switch Type | Safety |
Terminal Type | Cable |
Series | STR1 |
Switching Distance | 6 (Side Sensor - On) mm, 10 (Front Sensor - On) mm, 25 (Off) mm |
IP Rating | IP67 |
Supply Current | 50 mA |
Actuator Included | Yes |
Sensor Principle | RFID |
Length | 18mm |
Safety Category | Category 4 (EN ISO 13849), PL e (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (EN 62061) |
Width | 26.2mm |
Depth | 40mm |
Actuator Type | Standard |
Number of Approach Directions | 5 |
Built in Safety Relay | Yes |
Dimensions | 18 x 26.2 x 40 mm |
