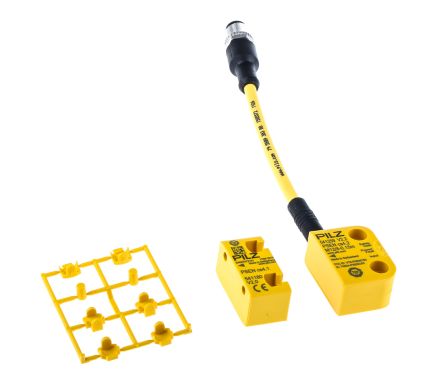

PSEN cs4.2 M12/8-0.15m/PSEN cs4.1 1Unit [541209]; 191-9809
by Pilz
0₫
Mã kho: 1919809
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Housing Material | PBT |
Connection Type | 8 Pin M12 Connector |
Switch Type | Safety |
Terminal Type | 8-Pin M12 Connector |
Switching Distance | 8 mm |
IP Rating | IP67, IP6K, IP9K |
Supply Current | 5 mA |
Actuator Included | Yes |
Sensor Principle | Transponder |
Safety Category | Category 4 (EN ISO 13849-1) |
Actuator Type | Coded |
Dimensions | 26.4 x 37 x 19 mm |
Length | 26.4mm |
Width | 37mm |
Depth | 19mm |
