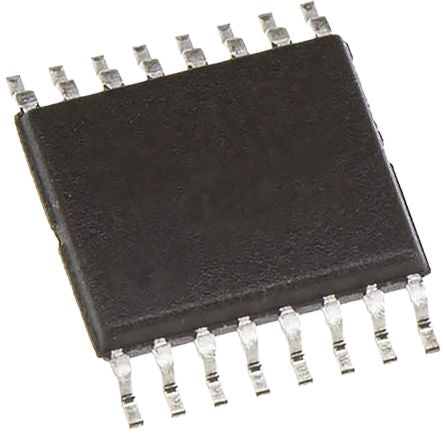

NXP SC18IS602BIPW,112, SPI to I2C Bridge, I2C, SPI, 1-TX 1-RX, 1.8MBps, 16-Pin TSSOP [SC18IS602BIPW,112]; 124-2424
by NXP
0₫
Mã kho: 1242424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 |
| Number of Receivers | 1 |
| Data Rate | 1.8Mbps |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 16 |
| Transmitter Signal Type | Single Ended |
| Receiver Signal Type | Single Ended |
| Interface Standards | I2C, SPI |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.4 → 3.6 V |
| Width | 4.5mm |
| Minimum Operating Temperature | -40 °C |
| Length | 5.1mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 5.1 x 4.5 x 0.95mm |
