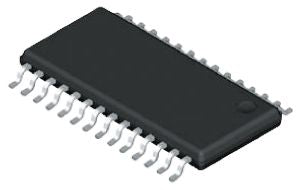

EXAR SP337EUEY-L, Multiprotocol Transceiver 2/3-TX 2 (RS-422), 5 (RS-232)-RX 2-TRX, 1 Mbps, 15 Mbps, 28-Pin TSSOP [SP337EUEY-L]; 733-6438
by EXAR
0₫
Mã kho: 7336438
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 (RS-485), 3 (RS-232) |
| Number of Receivers | 2 (RS-422), 5 (RS-232) |
| Number of Transceivers | 2 |
| Number of Drivers per Line | 8 (RS-232), 8 (RS-422), 256 (RS-485) |
| Number of Receivers per Line | 8 (RS-232), 80 (RS-422), 256 (RS-485) |
| Data Rate | 1 Mbps, 15 Mbps |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 28 |
| Transmitter Signal Type | Differential, Single Ended |
| Receiver Signal Type | Differential, Single Ended |
| Interface Standards | RS-232, RS-422, RS-485 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Maximum Operating Temperature | +85 °C |
| Length | 9.8mm |
| Dimensions | 9.8 x 4.5 x 1.05mm |
| Width | 4.5mm |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
