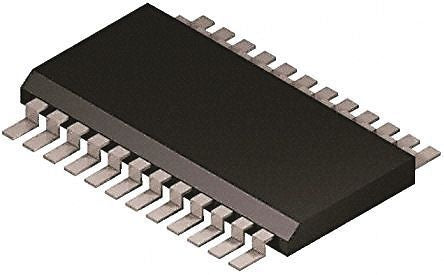

EXAR SP330EEY-L, Multiprotocol Transceiver, 1 (RS-485/RS-422), 2 (RS-232)-TX 1 (RS-485/RS-422), 2 (RS-232)-RX [SP330EEY-L]; 913-4360
by EXAR
0₫
Mã kho: 9134360
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 1 (RS-485/RS-422), 2 (RS-232) |
| Number of Receivers | 1 (RS-485/RS-422), 2 (RS-232) |
| Number of Transceivers | 1 (RS-485/RS-422), 2 (RS-232) |
| Number of Drivers per Line | 1 (RS-485/RS-422), 2 (RS-232) |
| Number of Receivers per Line | 1 (RS-485/RS-422), 2 (RS-232) |
| Data Rate | 1 Mbps, 20 Mbps |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 24 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Interface Standards | EIA/TIA-485 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Width | 4.5mm |
| Length | 7.9mm |
| Dimensions | 7.9 x 4.5 x 1.05mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
