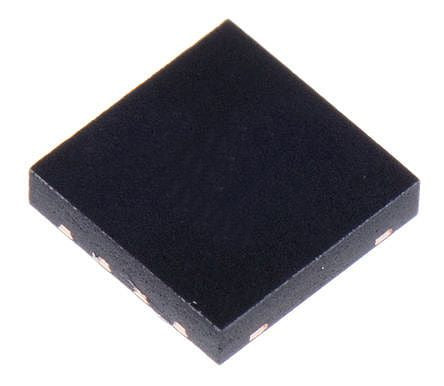

Linear Technology LTC2862IDD-1#PBF, Multiprotocol Transceiver, EIA/TIA-485-A/ RS-485/ RS-422 1 (RS-485/RS-422)-TRX [LTC2862IDD-1#PBF]; 851-6730
0₫
Mã kho: 8516730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Transceivers | 1 (RS-485/RS-422) |
Number of Drivers per Line | 1 (RS-422), 1 (RS-485) |
Number of Receivers per Line | 1 (RS-422), 1 (RS-485) |
Data Rate | 20Mbps |
Mounting Type | Surface Mount |
Package Type | DFN |
Pin Count | 8 |
Transmitter Signal Type | Differential |
Receiver Signal Type | Differential |
Interface Standards | EIA/TIA-485-A/ RS-485/ RS-422 |
Power Supply Type | Single |
Typical Single Supply Voltage | 3 → 5.5 V |
Width | 3mm |
Length | 3mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Height | 0.7mm |
Dimensions | 3 x 3 x 0.7mm |
