, Multiprotocol Transceiver [LTC1334CSW#PBF]; 153-3509
0₫
Mã kho: 1533509
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Transmitters | 2 (RS-485), 4 (RS-232) |
| Number of Receivers | 2 (RS-485), 4 (RS-232) |
| Number of Transceivers | 4 |
| Number of Drivers per Line | 1 (RS-232), 32 (RS-485) |
| Number of Receivers per Line | 1 (RS-232), 32 (RS-485) |
| Mounting Type | Surface Mount |

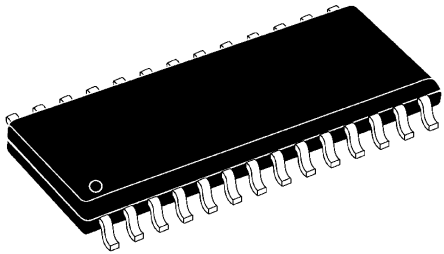

| Package Type | SOIC W |
| Pin Count | 28 |
| Transmitter Signal Type | Differential, Single Ended |
| Receiver Signal Type | Differential, Single Ended |
| Interface Standards | EIA-562, RS-232, RS-422, RS-485 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Dimensions | 18.08 x 7.6 x 2.34mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Width | 7.6mm |
| Height | 2.34mm |
| Length | 18.08mm |
