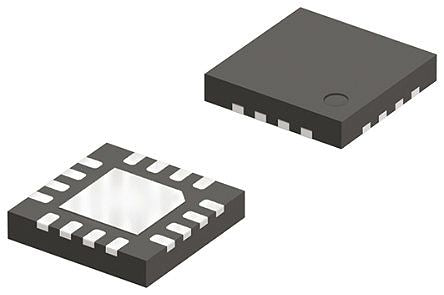

DG9409EDN-T1-GE4 Vishay, Multiplexer Switch IC Dual 4:1, 3 → 16 V, 16-Pin QFN [DG9409EDN-T1-GE4]; 164-8304
by Vishay
0₫
Mã kho: 1648304
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual 4:1 |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 → 16 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Differential |
| Output Signal Type | Differential |
| Typical Dual Supply Voltage | ±3 → ±8V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Height | 0.9mm |
| Multiplexer Architecture | 0.167361111111111 |
| Number of Inputs per Element | 8 |
| Length | 4mm |
| Dimensions | 4 x 4 x 0.9mm |
| Number of Outputs per Element | 2 |
| Width | 4mm |
| Maximum Power Dissipation | 1.88 W |
| Turn-On Time | 272ns |
