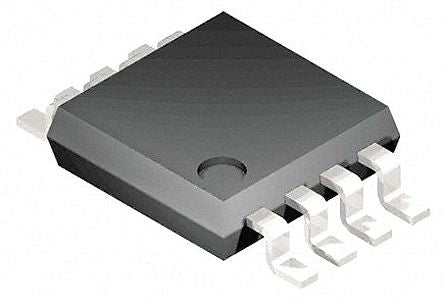

DG9233EDQ-T1-GE3 Vishay, Analogue Switch Dual SPST, 2.7 → 5.5 V, 8-Pin MSOP [DG9233EDQ-T1-GE3]; 164-8295
by Vishay
0₫
Mã kho: 1648295
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual SPST |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Switch Type | Analogue Switch |
| Pin Count | 8 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Turn-On Time | 200ns |
| Height | 0.95mm |
| Multiplexer Architecture | 0.0423611111111111 |
| Number of Inputs per Element | 1 |
| Dimensions | 3 x 3.1 x 0.95mm |
| Length | 3mm |
| Number of Outputs per Element | 1 |
| Width | 3.1mm |
