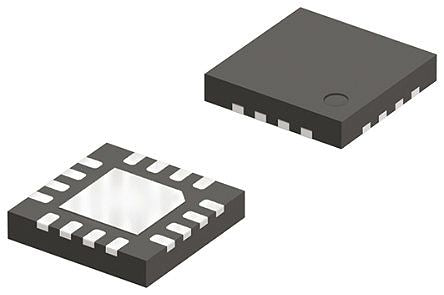

DG508BEN-T1-GE4 Vishay, Multiplexer Switch IC Single 8:1, 12 V, 16-Pin miniQFN [DG508BEN-T1-GE4]; 164-7588
by Vishay
0₫
Mã kho: 1647588
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single 8:1 |
| Package Type | MiniQFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 12 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 16 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 1 |
| Height | 0.55mm |
| Multiplexer Architecture | 0.334027777777778 |
| Number of Inputs per Element | 8 |
| Length | 2.7mm |
| Dimensions | 2.7 x 1.9 x 0.55mm |
| Turn-On Time | 425ns |
| Number of Outputs per Element | 1 |
| Maximum Power Dissipation | 525 mW |
| Width | 1.9mm |
