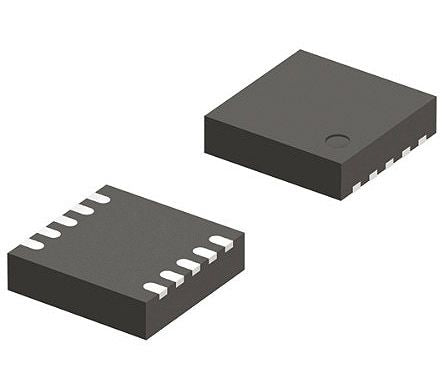

DG2519EDN-T1-GE4 Vishay, Analogue SPDT Switch Dual SPDT, 1.8 → 5.5 V, 10-Pin DFN [DG2519EDN-T1-GE4]; 164-7571
by Vishay
0₫
Mã kho: 1647571
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual SPDT |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Switch Type | CMOS Analogue |
| Pin Count | 10 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Maximum Power Dissipation | 1.19 W |
| Width | 3mm |
| Multiplexer Architecture | 0.0840277777777778 |
| Height | 0.95mm |
| Number of Inputs per Element | 2 |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
| Turn-On Time | 50ns |
| Number of Outputs per Element | 4 |
