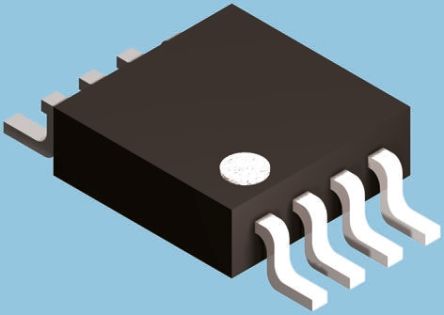

TS5A21366DCUR Texas Instruments, Analogue Switch Dual SPST, 1.65 → 5.5 V, 8-Pin US [TS5A21366DCUR]; 162-8447
0₫
Mã kho: 1628447
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual SPST |
| Package Type | US |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.65 → 5.5 V |
| Switch Type | Analogue |
| Pin Count | 8 |
| Power Supply Type | Single |
| Input Signal Type | Differential |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Height | 0.8mm |
| Number of Inputs per Element | 2 |
| Dimensions | 2.1 x 2.4 x 0.8mm |
| Width | 2.4mm |
| Number of Outputs per Element | 2 |
| Length | 2.1mm |
