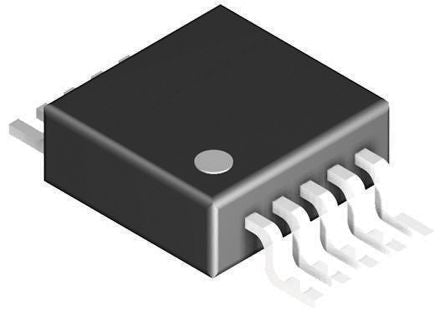

TS3USB30EDGSR Texas Instruments, Analogue Switch Dual 2:1 480MBps, 3 → 4.3 V, 10-Pin VSSOP [TS3USB30EDGSR]; 817-5584
0₫
Mã kho: 8175584
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual 2:1 |
| Package Type | VSSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 → 4.3 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 10 |
| Power Supply Type | Single |
| Input Signal Type | Differential |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Number of Inputs per Element | 2 |
| Length | 3.1mm |
| Height | 0.95mm |
| Width | 3.1mm |
| Multiplexer Architecture | 0.0430555555555556 |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Number of Outputs per Element | 4 |
| Maximum Data Rate | 480Mbps |
