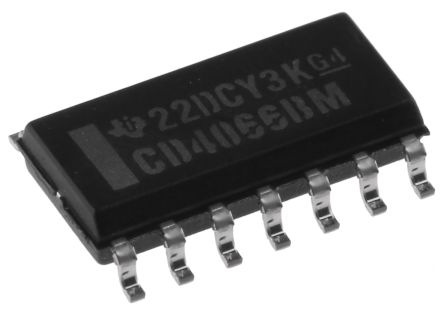

CD4066BM96 Texas Instruments, Analogue Switch Quad SPST, 12 V, 15 V, 5 V, 9 V, 14-Pin SOIC [CD4066BM96]; 662-2542
0₫
Mã kho: 6622542
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPST |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V, 15 V |
| Switch Type | Analogue |
| Pin Count | 14 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±3 V, ±5 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 4 |
| Width | 3.91mm |
| Length | 8.65mm |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Height | 1.58mm |
