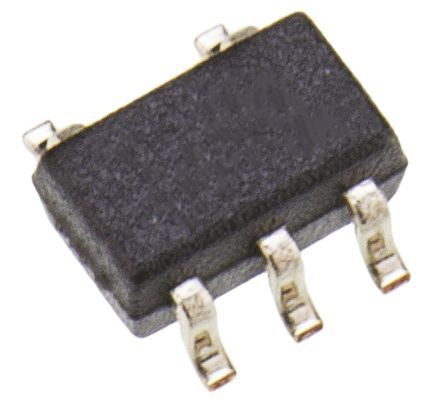

ON Semiconductor, NS5B1G385DFT2G [NS5B1G385DFT2G]; 186-9886
0₫
Mã kho: 1869886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | SPST |
| Package Type | SC-70 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2 → 5.5 V |
| Switch Type | Analogue |
| Pin Count | 5 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Length | 2.2mm |
| Number of Inputs per Element | 1 |
| Turn-On Time | 6ns |
| Number of Outputs per Element | 1 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Width | 1.35mm |
| Propagation Delay Time | 0.5ns |
| Height | 1mm |
