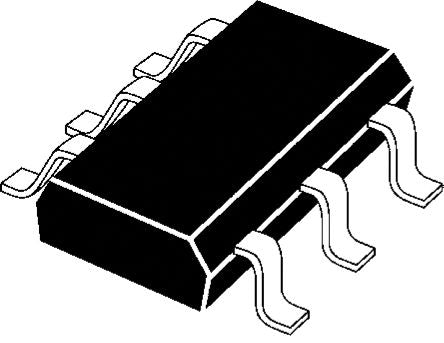

NLHV4157NDFT2G ON Semiconductor, Analogue SPDT Switch, -12 → -4 V dc, 6-Pin SC-88 [NLHV4157NDFT2G]; 171-8383
0₫
Mã kho: 1718383
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | SC-88 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | -12 → -4 V dc |
| Switch Type | Analogue Switch |
| Pin Count | 6 |
| Power Supply Type | Single |
| Input Signal Type | CMOS, Single Ended |
| Output Signal Type | CMOS, Single Ended |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 1 |
| Multiplexer Architecture | 0.0430555555555556 |
| Height | 1mm |
| Propagation Delay Time | 2ns |
| Number of Inputs per Element | 1 |
| Turn-On Time | 220ns |
| Width | 1.35mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Maximum Power Dissipation | 60 mW |
| Number of Outputs per Element | 2 |
