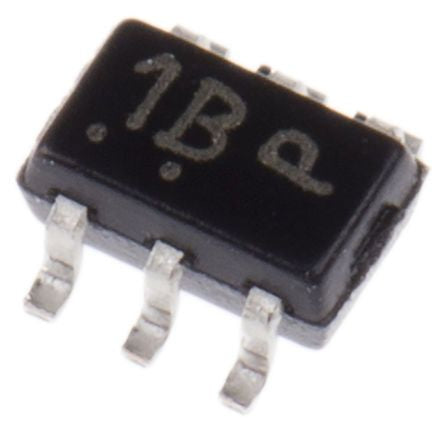

NLHV3157NDFT2G ON Semiconductor, Analogue Switch Single SPDT, -12 → -4 V, 6-Pin SC88 [NLHV3157NDFT2G]; 123-8823
0₫
Mã kho: 1238823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single SPDT |
| Package Type | SC88 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | -12 → -4 V |
| Switch Type | Analogue Switch |
| Pin Count | 6 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 2 |
| Multiplexer Architecture | 0.0840277777777778 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Propagation Delay Time | 2ns |
| Number of Inputs per Element | 2 |
| Length | 2.2mm |
| Turn-On Time | 220ns |
| Width | 1.35mm |
| Maximum Power Dissipation | 60 mW |
| Number of Outputs per Element | 1 |
