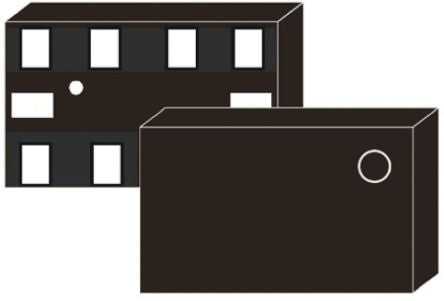

FSUSB43L10X ON Semiconductor, Analogue Switch Single DPDT 480Mbit/s, 3 → 4.3 V, 10-Pin MicroPak [FSUSB43L10X]; 166-3563
0₫
Mã kho: 1663563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single DPDT |
| Package Type | MicroPak |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 → 4.3 V |
| Switch Type | Analogue |
| Pin Count | 10 |
| Power Supply Type | Single |
| Input Signal Type | Differential |
| Output Signal Type | Differential |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 2 |
| Length | 2.1mm |
| Number of Outputs per Element | 4 |
| Number of Inputs per Element | 2 |
| Dimensions | 2.1 x 1.6 x 0.5mm |
| Width | 1.6mm |
| Height | 0.5mm |
| Maximum Data Rate | 480Mbit/s |
