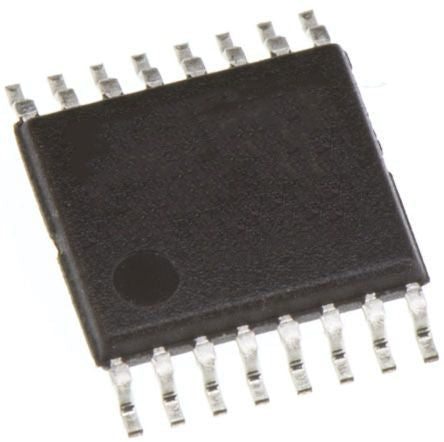

MAX4712CUE+,Analogue Switch IC [MAX4712CUE+]; 191-6822
0₫
Mã kho: 1916822
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPST |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.7 → 11 V |
| Switch Type | Analogue |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | TTL/CMOS |
| Typical Dual Supply Voltage | ±2.7 to ±5.5V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 4 |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Length | 5.1mm |
| Maximum Power Dissipation | 457 mW |
| Width | 4.5mm |
| Height | 0.95mm |
