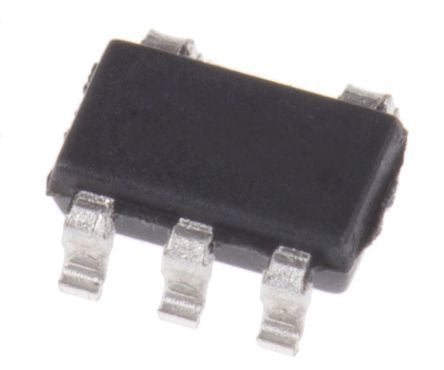

0.5Ohm Low-Voltage SPST Analog Switches [MAX4627EUK+T]; 190-5534
0₫
Mã kho: 1905534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | SPST |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Switch Type | Analogue |
| Pin Count | 5 |
| Power Supply Type | Single |
| Input Signal Type | TTL |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Dimensions | 3 x 1.75 x 1.3mm |
| Length | 3mm |
| Height | 1.3mm |
| Turn-On Time | 90ns |
| Maximum Power Dissipation | 571 mW |
| Width | 1.75mm |
