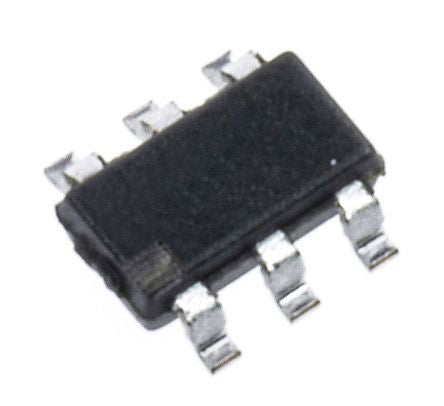

1Ohm LVoltage SPDT Analog switch [MAX4624EZT+T]; 190-5504
0₫
Mã kho: 1905504
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Switch Type | Analogue |
| Pin Count | 6 |
| Power Supply Type | Single |
| Input Signal Type | TTL |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Turn-On Time | 100ns |
| Maximum Power Dissipation | 571 mW |
| Length | 3mm |
| Dimensions | 3 x 1.65 x 0.9mm |
| Width | 1.65mm |
| Height | 0.9mm |
