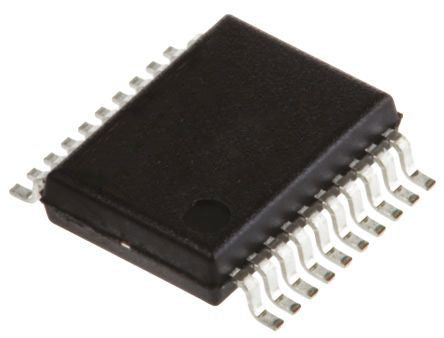

Quad Fault SPDT Analog Switch [MAX4533CAP+]; 190-4690
0₫
Mã kho: 1904690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPDT |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 9 → 36 V |
| Switch Type | Analogue |
| Pin Count | 20 |
| Power Supply Type | Dual, Single |
| Input Signal Type | TTL/CMOS |
| Typical Dual Supply Voltage | ±4.5 to ±18V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 4 |
| Length | 7.3mm |
| Dimensions | 7.3 x 5.38 x 1.78mm |
| Maximum Power Dissipation | 842 mW |
| Width | 5.38mm |
| Height | 1.78mm |
