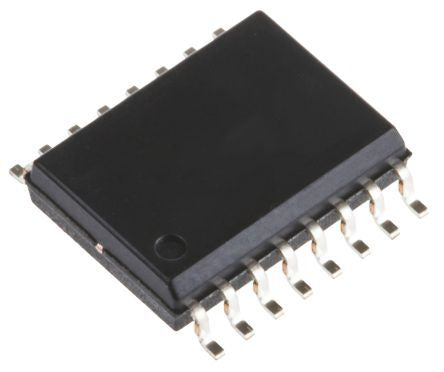

MAX354CWE+,Multiplexer Switch IC [MAX354CWE+]; 191-4672
0₫
Mã kho: 1914672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single 8:1 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 4.5 → 36 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | CMOS, TTL |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±4.5 to ±18V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 1 |
| Multiplexer Architecture | 0.167361111111111 |
| Number of Inputs per Element | 4 |
| Length | 10.5mm |
| Dimensions | 10.5 x 7.6 x 2.35mm |
| Turn-On Time | 400ns |
| Number of Outputs per Element | 1 |
| Width | 7.6mm |
| Height | 2.35mm |
