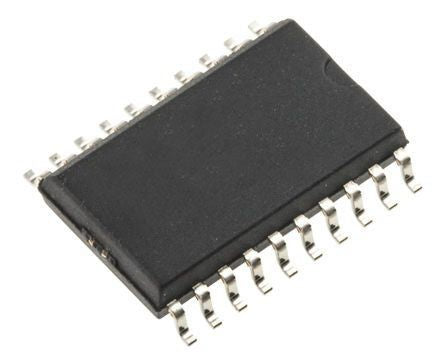

MAX333CWP+,Analogue Switch IC [MAX333CWP+]; 191-5274
0₫
Mã kho: 1915274
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPDT |
| Package Type | SO |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 10 → 30 V |
| Switch Type | Analogue |
| Pin Count | 20 |
| Power Supply Type | Dual, Single |
| Input Signal Type | TTL/CMOS |
| Typical Dual Supply Voltage | 5 → 18V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 4 |
| Dimensions | 13 x 7.6 x 2.35mm |
| Length | 13mm |
| Width | 7.6mm |
| Height | 2.35mm |
| Maximum Power Dissipation | 800 mW |
| Turn-On Time | 1000ns |
