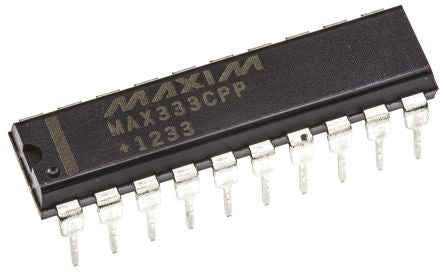

MAX333CPP+, Multiplexer Switch ICs [MAX333CPP+]; 192-3230
0₫
Mã kho: 1923230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPDT |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Typical Single Supply Voltage | 10 → 30 V |
| Switch Type | Analogue Switch |
| Pin Count | 20 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±5 to ±8V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 4 |
| Multiplexer Architecture | 0.0430555555555556 |
| Height | 4.45mm |
| Width | 7.87mm |
| Number of Outputs per Element | 2 |
| Turn-On Time | 500ns |
| Number of Inputs per Element | 1 |
| Length | 26.54mm |
| Dimensions | 26.54 x 7.87 x 4.45mm |
