MAX329CPE+,Multiplexer Switch IC [MAX329CPE+]; 191-5273
0₫
Mã kho: 1915273
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual 8:1 |

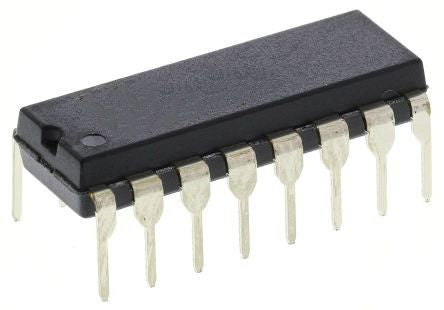

| Package Type | PDIP |
| Mounting Type | Through Hole |
| Typical Single Supply Voltage | 10 → 30 V |
| Switch Type | Analogue |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Differential |
| Typical Dual Supply Voltage | 5 → 18V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 2 |
| Number of Inputs per Element | 8 |
| Turn-On Time | 1.5µs |
| Number of Outputs per Element | 1 |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Multiplexer Architecture | 0.334027777777778 |
| Maximum Power Dissipation | 842.1 mW |
| Height | 4.45mm |
| Width | 7.87mm |
| Length | 19.43mm |
