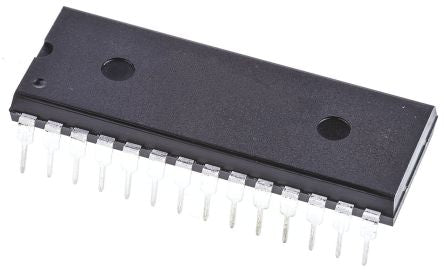

MAX307CPI+, Multiplexer Switch ICs [MAX307CPI+]; 192-3090
0₫
Mã kho: 1923090
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual 8:1 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Typical Single Supply Voltage | 5 → 30 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 28 |
| Power Supply Type | Dual, Single |
| Input Signal Type | CMOS, TTL |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±4.5 to ±20V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 2 |
| Height | 4.45mm |
| Dimensions | 32.26 x 14.61 x 4.45mm |
| Multiplexer Architecture | 0.667361111111111 |
| Number of Outputs per Element | 1 |
| Length | 32.26mm |
| Number of Inputs per Element | 16 |
| Width | 14.61mm |
