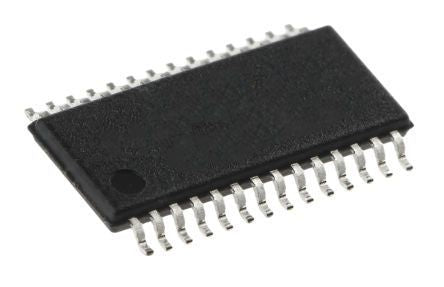

MAX306EUI+,Multiplexer Switch IC [MAX306EUI+]; 191-3258
0₫
Mã kho: 1913258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single 16:1 |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5 → 30 V |
| Switch Type | Analogue |
| Pin Count | 28 |
| Power Supply Type | Dual, Single |
| Input Signal Type | TTL/CMOS |
| Typical Dual Supply Voltage | 4.5 → 20V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Length | 9.8mm |
| Number of Inputs per Element | 16 |
| Number of Outputs per Element | 1 |
| Dimensions | 9.8 x 4.5 x 0.95mm |
| Multiplexer Architecture | 0.667361111111111 |
| Width | 4.5mm |
| Maximum Power Dissipation | 1.03 W |
| Height | 0.95mm |
