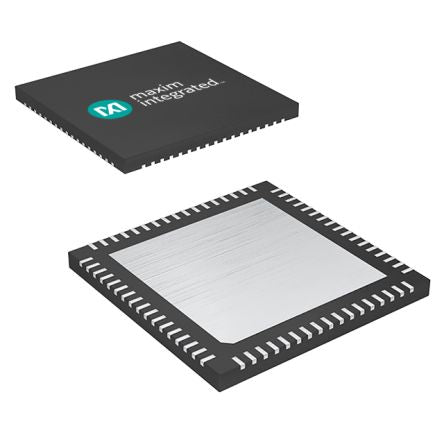

Octal HV Digital Pulser + T/R Switch [MAX14808ETK+]; 190-4670
0₫
Mã kho: 1904670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Octal, Quad |
| Package Type | TQFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.7 → 5.25 V |
| Switch Type | Analogue |
| Pin Count | 68 |
| Power Supply Type | Single |
| Input Signal Type | Differential, Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 8 |
| Propagation Delay Time | 18ns |
| Dimensions | 10.1 x 10.1 x 0.75mm |
| Length | 10.1mm |
| Turn-On Time | 1.2µs |
| Width | 10.1mm |
| Height | 0.75mm |
| Maximum Power Dissipation | 4 W |
