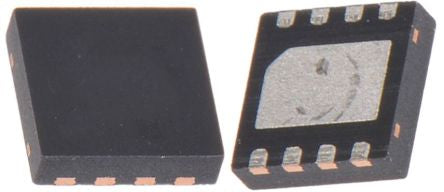

MAX14759ETA+T,Analogue Switch IC [MAX14759ETA+T]; 191-3802
0₫
Mã kho: 1913802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | SPST |
| Package Type | TDFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 → 5.5 V |
| Switch Type | Analogue |
| Pin Count | 8 |
| Power Supply Type | Single |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Turn-On Time | 300µs |
| Dimensions | 3.1 x 3.1 x 0.75mm |
| Length | 3.1mm |
| Height | 0.75mm |
| Maximum Power Dissipation | 1.95 W |
| Width | 3.1mm |
