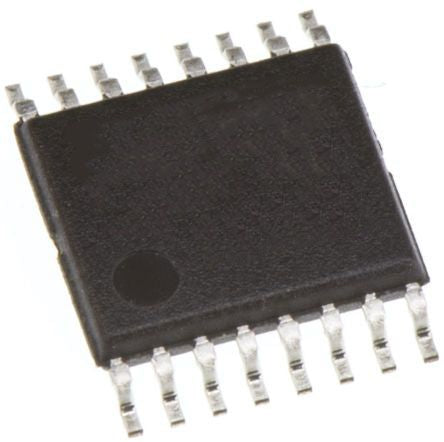

Quad SPST +70V Analog Switches [MAX14756EUE+]; 190-4667
0₫
Mã kho: 1904667
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPST |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 10 → 70 V |
| Switch Type | Analogue |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Typical Dual Supply Voltage | ±35V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 4 |
| Length | 5.1mm |
| Turn-On Time | 60µs |
| Height | 0.95mm |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Width | 4.5mm |
| Maximum Power Dissipation | 889 mW |
