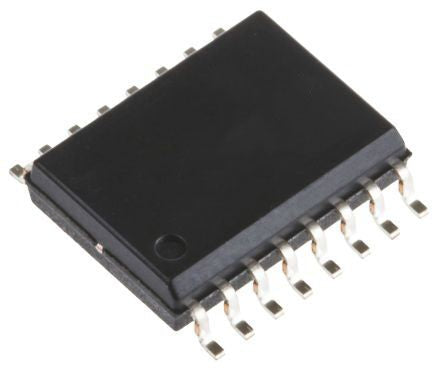

8-Ch / Dual 4-Ch, CMOS Analog Multiplex [DG408CY+]; 190-5587
0₫
Mã kho: 1905587
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single 8:1 |
| Package Type | SO |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5 → 30 V |
| Switch Type | Analogue |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | TTL/CMOS |
| Typical Dual Supply Voltage | ±5 to ±20V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Number of Channels per Chip | 1 |
| Maximum Power Dissipation | 696 mW |
| Multiplexer Architecture | 0.334027777777778 |
| Dimensions | 10 x 4 x 1.5mm |
| Number of Outputs per Element | 1 |
| Number of Inputs per Element | 8 |
| Width | 4mm |
| Height | 1.5mm |
| Length | 10mm |
