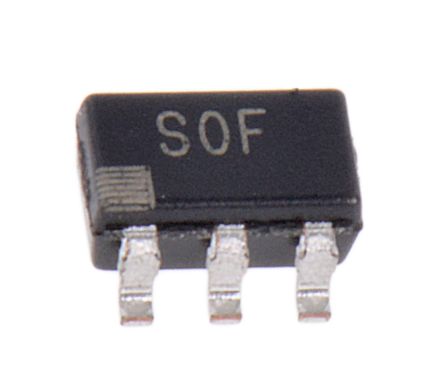

ADG802BRTZ-500RL7 Analog Devices, Analogue Switch Single SPST, 1.8 → 5.5 V, 6-Pin SOT-23 [ADG802BRTZ-500RL7]; 820-9208
0₫
Mã kho: 8209208
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Configuration | Single SPST |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Typical Single Supply Voltage | 1.8 → 5.5 V |
Switch Type | Analogue |
Pin Count | 6 |
Power Supply Type | Single |
Input Signal Type | Single Ended |
Output Signal Type | Single Ended |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Number of Channels per Chip | 1 |
Height | 1.3mm |
Multiplexer Architecture | 0.0423611111111111 |
Length | 3mm |
Dimensions | 3 x 1.7 x 1.3mm |
Number of Outputs per Element | 1 |
Number of Inputs per Element | 1 |
Width | 1.7mm |
