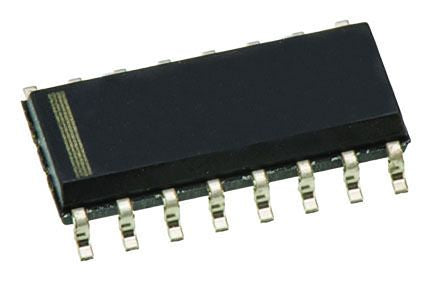

ADG711BRZ-REEL7 Analog Devices, Analogue Switch Quad SPST, 1.8 → 5.5 V, 16-Pin SOIC [ADG711BRZ-REEL7]; 914-0453
0₫
Mã kho: 9140453
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPST |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Switch Type | Analogue Switch |
| Pin Count | 16 |
| Power Supply Type | Single |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 4 |
| Multiplexer Architecture | 0.169444444444444 |
| Height | 1.5mm |
| Dimensions | 10 x 4 x 1.5mm |
| Number of Outputs per Element | 4 |
| Length | 10mm |
| Number of Inputs per Element | 4 |
| Turn-On Time | 16ns |
| Maximum Power Dissipation | 520 mW |
| Width | 4mm |
