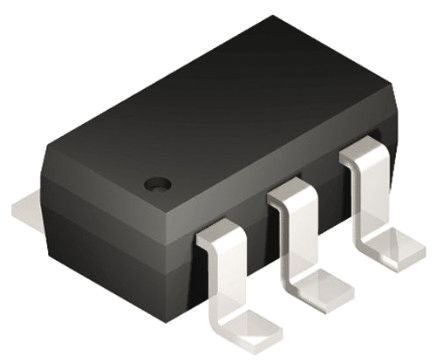

ADG702LBRTZ-REEL7 Analog Devices, Multiplexer/Demultiplexer SPST, 5.5 V, 6-Pin SOT-23 [ADG702LBRTZ-REEL7]; 153-3151
0₫
Mã kho: 1533151
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | SPST |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5.5 V |
| Switch Type | Analogue Switch |
| Pin Count | 6 |
| Power Supply Type | Single |
| Input Signal Type | CMOS, TTL |
| Output Signal Type | CMOS, TTL |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Number of Inputs per Element | 1 |
| Length | 2.9mm |
| Height | 1.3mm |
| Dimensions | 2.9 x 1.6 x 1.3mm |
| Multiplexer Architecture | 0.0423611111111111 |
| Turn-On Time | 18ns |
| Number of Outputs per Element | 1 |
| Maximum Power Dissipation | 282 mW |
| Width | 1.6mm |
