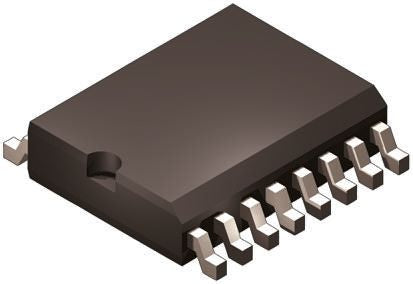

ADG512BRZ Analog Devices, Analogue Switch Quad SPST, 5 V, 16-Pin SOIC [ADG512BRZ]; 168-4113
0₫
Mã kho: 1684113
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Quad SPST |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5 V |
| Switch Type | Analogue |
| Pin Count | 16 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±5V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 4 |
| Length | 10mm |
| Height | 1.5mm |
| Width | 4mm |
| Maximum Power Dissipation | 600 mW |
| Dimensions | 10 x 4 x 1.5mm |
