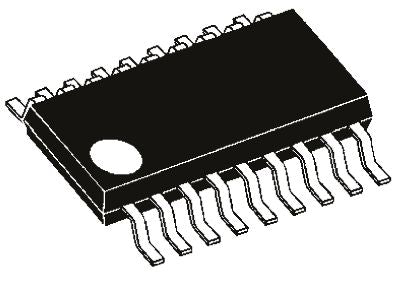

ADG428BRZ Analog Devices, Multiplexer Single 8:1, 12 V, 5 V, 18-Pin SOIC W [ADG428BRZ]; 709-7660
0₫
Mã kho: 7097660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Single 8:1 |
| Package Type | SOIC W |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 5 V, 12 V |
| Switch Type | Analogue Multiplexer |
| Pin Count | 18 |
| Power Supply Type | Dual, Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Typical Dual Supply Voltage | ±15V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Height | 2.35mm |
| Multiplexer Architecture | 0.334027777777778 |
| Length | 11.75mm |
| Dimensions | 11.75 x 7.6 x 2.35mm |
| Width | 7.6mm |
| Maximum Power Dissipation | 600 mW |
