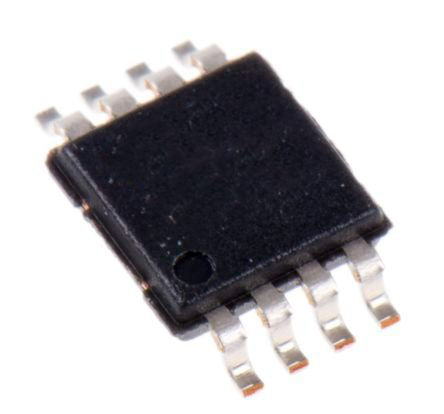

ADG3233BRMZ Analog Devices, Multiplexer Switch IC, 1.65 → 3.6 V, 8-Pin MSOP [ADG3233BRMZ]; 183-1828
0₫
Mã kho: 1831828
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 1.65 → 3.6 V |
| Switch Type | Bus |
| Pin Count | 8 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Channels per Chip | 1 |
| Propagation Delay Time | 6.5ns |
| Multiplexer Architecture | 0.0423611111111111 |
| Width | 3.2mm |
| Length | 3.2mm |
| Dimensions | 3.2 x 3.2 x 0.95mm |
| Number of Outputs per Element | 1 |
| Height | 0.95mm |
| Number of Inputs per Element | 1 |
